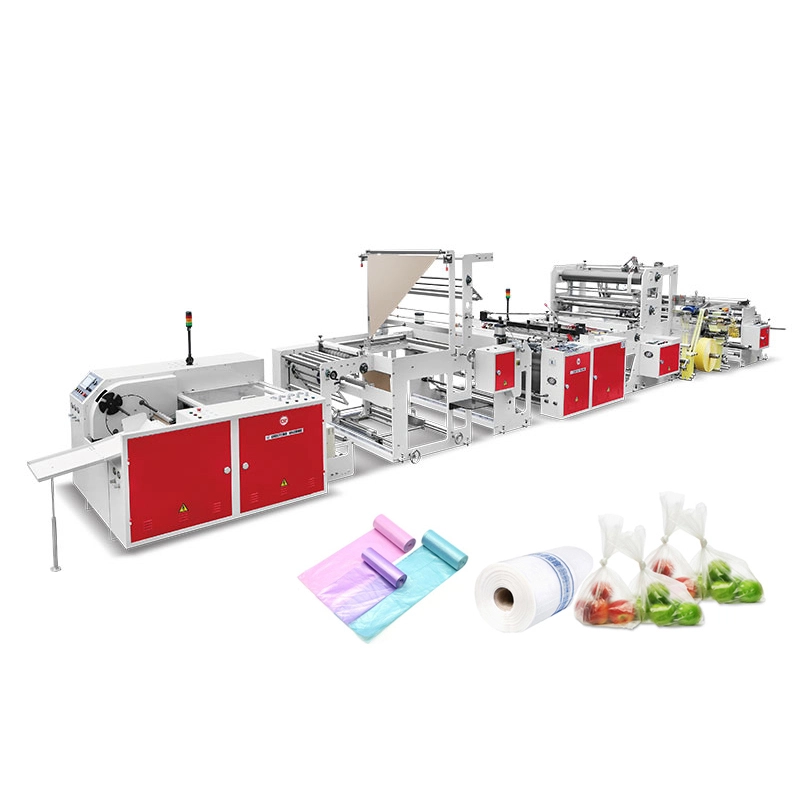

1000PR+C2 Fully Automatic Bottom Sealing Rolling Bag Making Machine With Core/Coreless
The 1000PR+C2 Fully Automatic Bottom Sealing Rolling Bag Making Machine With Core/Coreless is versatile and can produce various types of bags including flat bags, eight-side seal bags, vegetable bags, and tablecloth bags. It can automatically switch rolls, operate at high speeds with a maximum of 80 meters per minute for core materials and 120 meters per minute for coreless materials, making it suitable for large-scale packaging production.
Product Description
CW-1000PR+C2 High Speed Fully Automatic bottom sealing roll to roll shuttle plastic rolling garbage bag making machine for bag on roll with core and without core
1. for making rolling flat bags, star seal bottom bag, vegetable bag, and table cloth, either with paper core or without core
2. servo motor control, sealing knife with shuttle system for non-stop film feeding
3. automatic roll exchange
optional:
1. slitting +gusseting tower
2. t shirt bag / s bag die cutting system
3. paper label device
| Unwinder width | 900mm (single line), 400mmx2 (double lines) |
| Unwinder diameter | 800mm max. |
| rewinding width | with core - 600mm single line, 300mmx2(double lines) |
| without core -600mm single line, 280mm x 2 (double lines) | |
| Bag making height | 200-4000mm |
| Bag making speed | with core 80m/min, without core 120m/min |
| Total power | about 21kw |
| Machine dimension | 6500 x 3250 x 1900mm |
| Machine weight | 2800kgs |
| max.diameter of rewinding | 160mm. |
Bag Samples
star sealing garbage bag making machine
Details Images
friction unwinder: automatic lift the jumbo roll, can be one reel or two reels, with film break alarming function
Two line folding units for folding the film before sealing, for star bag purpose
sealing knife and perforation knife at the same place, the feeding adopt shuttle system to keep film feeding non stop when the sealing is done.
C fold unit: for folding table cloth into smaller width for easy wind up
Rewinding part: can be one line or separate into two lines, and with optional paper core feeding or coreless function.
control Panel & touch screen: 6 languages for your choice.
Main Part
Product Usage
Packing
About Us
Exhibition
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
