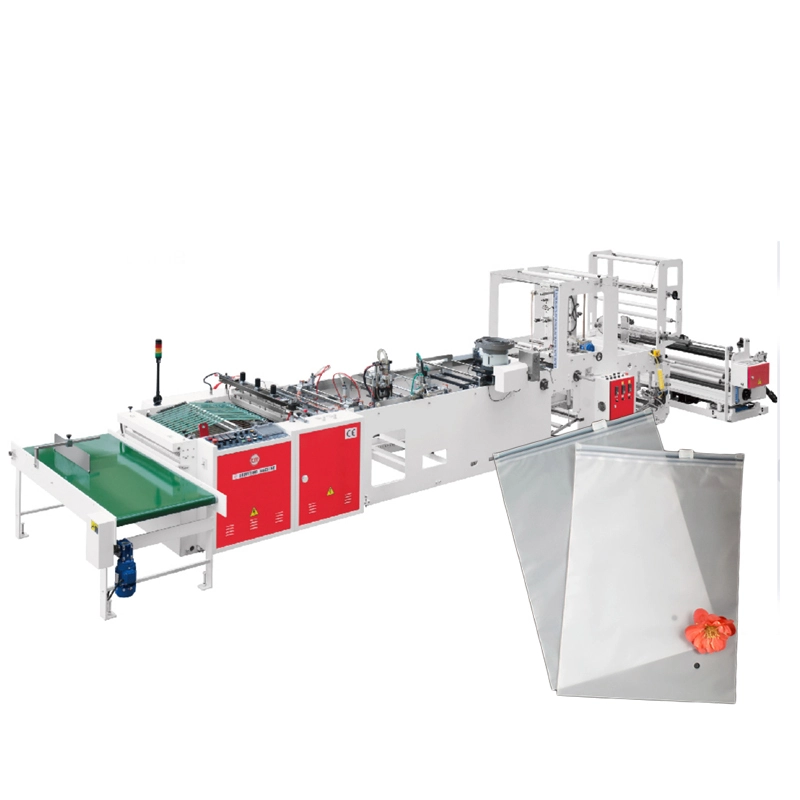

800SBD+ZP Automatic Pe Slider Ziplock Plastic Bag Making Machine
The 800SBD+ZP Automatic Pe Slider Ziplock Plastic Bag Making Machine allows for the customization of sealing blades. It can produce 100 bags per minute and has the option to be equipped with an automatic slider attachment, making it suitable for the production of clothing zipper bags. It is applicable to enterprises that aim to efficiently produce high-quality zipper self-sealing bags. Whether it is for packaging companies looking to streamline their production processes or manufacturers in need of customizing bags for their products, with its automated functions and the ability to produce bags of various sizes, it is an excellent choice for improving efficiency and reducing costs in the packaging industry.
Product Description
Brief Introduction:
This is an automatic machine converts either a lay flat sheet or a tubular roll of PE or PP material into a side seal bag and automatically attaches and seals a zipper with ultrasonic sealing inline on the machine making a Zipper bag. Zipper profile are fed in and attached by continuous sealing units.
Customized sealing blades based on profile styles.The machine is capable of running at 100 pcs of bags /minute.
Automatically zipper slider attaching can be added as optional.
It’s user friendly ergonomic design, rigid construction with resistant to vibration
Recipe and production control system with special PLC system.
This is an automatic Side sealing bag making machine to seal plastic zipper reel to Plastic film, in order to form the zipper bags with or without slider head.
Brief Introduction
Special design of PE zipper bag making machine,fully automatic produce,the operation with more simplify design.
Main Features
1.unwinding with air cylinder loading.
2.low friction top fold and bottom gusset device.
3.easy operation zipper heat sealing device.
4.heavy duty side seling knife,easy clean .
5.with multiterm automatic warming,automatic stop device.
6.new design liquid crystal screen, with 5 kinds of language choose.
optional
1.handle puncher design.
2.double lines sealing knife and bottom sealing knife.
3.round bottom chicken device.
4.European style diaper device.
| Model | CW-800SBD+ZP |
| Bag type | PE 、PP side seal bag, zipper bag, zipper slider bag |
| Unwind width | 1200mm |
| Bag length | 700mm |
| Bottom Gusset | 20-70mm |
| Production speed | 100pcs/min |
| Line speed | 60m/min |
| Total power | 15 kw |
| Machine dimension | 8000*2000*2000mm |
| Machine weight | 2800kg |
| Air compressor | 6HP |
Sample Bag
slider zipper bag
zipper bag
Machine Components
Unwinding part
1.The max.diameter of the unwinder is 600mm,the unwinder shaft adopt plug-shaft
2.Unwinder with EPC device
3.Manual magnetic power tension contro
Zipper sealing part
Special for sealing zipper with high temperature.
Slidder zipper attaching part
The ultrasonic unit is for making the zipper seal well.
Sealing and cutting part
1.Side sealing knife principal axis transmission belt cylinder lifting and down.
2.With water cycle cooling system.
3.With concealed style heating tube, temperature steady
Main Part
Certificate
Packing
About Us
Exhibition
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
