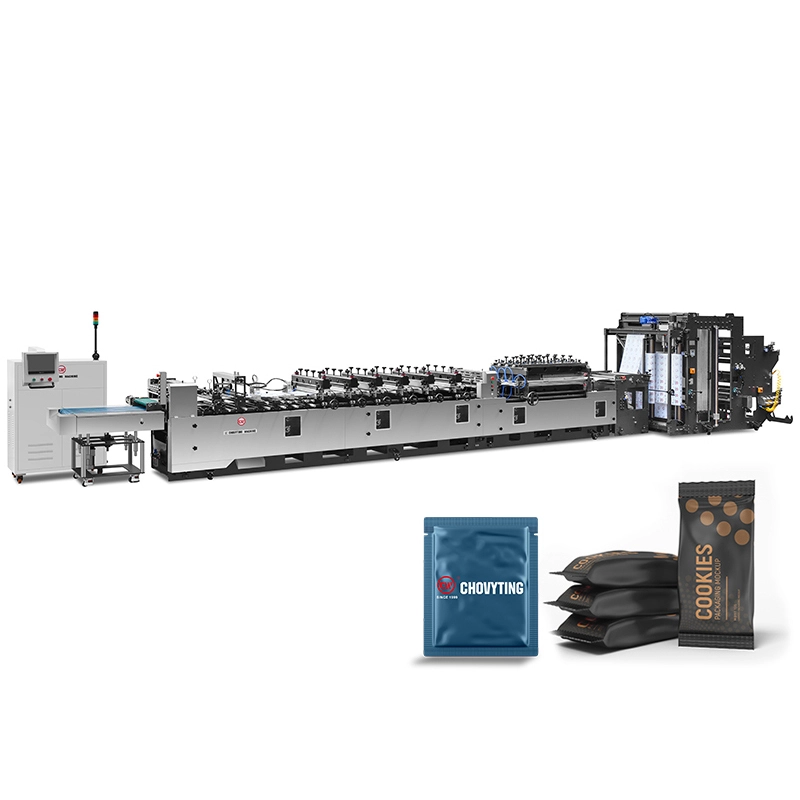

600A Three Side / Central Sealing Pouch Making Machine
The 600A Three Side / Central Sealing Pouch Making Machine is practical and versatile, suitable for various composite materials, especially plastic PE composite films. Its diverse functions allow for the production of center-sealed pouches with or without corner supports, three-side sealed pouches, and even five-side sealed pouches with the help of side supports. With a super-long 6x feed design (up to 2100mm), it effortlessly meets large packaging requirements, helping businesses efficiently produce packaging bags of different sizes and increase productivity.
Product Description
CWZD-400A Laminated plastic Central sealing Three sealing bag making machine
This machine is able to make center sealing bag with or without gusset as well as three side sealing bag. the applied material should be plastic pe laminated film.
Note: Please send us bag samples & its size (width x length), in order to confirm every detail and work out proper offer for you.
Brief Introduction:
Economic type laminated film bag making machine,it is used for various kinds of laminated material,meanwhile,it also has side gusset of central sealing bag,can make five side sealing bag.
Features:
1.All of the parameter display by CRT
2.It has EPC and double photocell for unwinding
3.It has centralized oil adding for every lubrication points
4.Super length has 6 times feeding design(Max length:350mm*6=2100mm)
5.Automatic waste rewinding unit
Optional:
1.Stand-up doy bag device
2.Punching for handle
3.Round angle puncher
| Model | CWZD-400A | CWZD-500A | CWZD-600A |
| Width of unwinding | 800mm | 1000mm | 1200mn |
| Length of unwinding | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) | 70-350mm*N(N≤6) |
| Punch-making width | 70-380mm | 70-480mm | 70-580mm |
| Speed of bag-making | 40-170pcs/min | 40-170pcs//min | 40-150pcs/min |
| Total Power | 24KW | 26KW | 34KW |
| Weight of machine | 3500kg | 3850kg | 4670kg |
| Machine dimension(L*W*H) | 8000*1750*1800mm | 8000*1950*1900mm | 8000*2050*2100mm |
| Air compressor(not included) | 5HP | 5HP | 6.5HP |
Sample Bag
Details Images
Main Part
Packing
About Us
Exhibition
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2011,sell to Domestic Market(24.00%),South America(18.00%),Southeast Asia(14.00%),Mid East(12.00%),Eastern Europe(10.00%),Africa(6.00%),Oceania(5.00%),South Asia(4.00%),North America(2.00%),Northern Europe(2.00%),Eastern Asia(00.00%),Western Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bag Making Machine,Film Blowing Machine,Printing Machine,Slitting Machine
4. why should you buy from us not from other suppliers?
CHOVYTING machinery is a manufacturer specialized in the design and production of plastic bag machinery since 1999.Since the company moved to new factory in 2017,it has adopted modern management methods such as 6S site management,PMC production management
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
