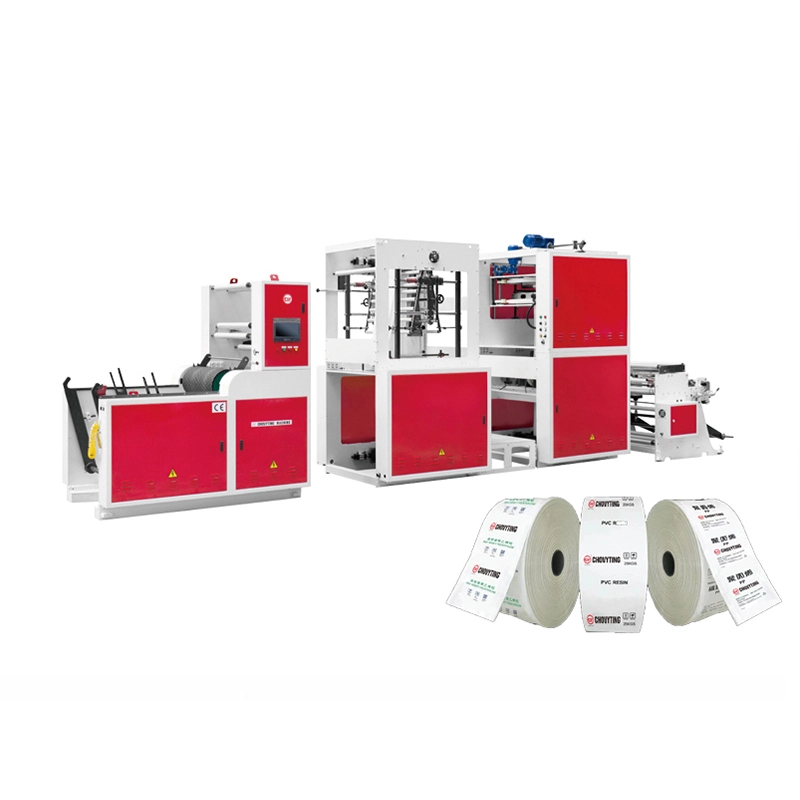

600LEB Servo Drive Ffs Tube Film Embossing / Gusset Rewinding Machine

Brief Introduction

The Form, Fill, and Seal (FFS) packaging film designed to be reliable, simple, and cost effective, while offering many

customization options.

(FFS) packaging film offers advantages over premade bagging such as increased production speed, reduced per-bag cost, and increased flexibility in finished bag size.

It also has the feature of preventing slipping in the pallet arrangement with its embossed structure.

FFS is an ideal packaging solution for many different industries including petrochemical and plastic resins, agricultural, chemical, biomass, industrial manufacturing, pet food and livestock feed, lawn and garden. Products that may be packaged by these machines include resin pellets, wood pellets, salt, fertilizer, rocks and stone, chemicals, powders, spices and powders, dried foods, cement and slurries, and granular products.

Applications for FFS are for example:

• Food industry - for Salt, Sugar, Pasta Packaging

• Construction industry - for chalk, plaster, Diatom ooze

• Agriculture - for soil packaging

• Petrochemicals -packing of granulate material like Polyethylene granules, master batches, chemicals etc

• Heavy duty sacks

Penuamatic unwinder:

suitable for jumbo roll diameter 900mm, width 700mm. weight 350kg.

with automatic EPC for edge correction.

with air shaft, automatic tension control.

Rewinder unit:

with surface friction rewinding design

with 3" & 6" air shaft for exchange

with servo motor control , auto tension. synchronized speed with main machine

with hydraulic unloading system, max.affordable weight can be 300kg.

Embossing unit for anti-slip purpose:

from inside out embossing pattern, suitable for film thickness 0.04-0.3mm material.

inline with rotary tower, for rotary the pattern.by AC motor independent control.

Gusseting unit:

gusseting depth: 40-100mm each side.

with meter counter & auto stop function

with servo motor drive for traction

Q1- Is your company a factory or a trading company?

A1-We are manufacturer and self-operatd export

Q2- Where is your factory? How can i visit your company?

A2-Our factory is located in Ruian city, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane (3 hours for train, 45minutes by plane).

Q3-What is the suitable material for your machines?

A3-PE, OPP, and laminated material etc are suitable for our machines

Q4.-What kind of machine do you have?

A4-We are specializing in manufacturing various of plastic bag making machine, laminated pouch making machine, film blowingmachine, paper handle bag machine, paper cup making machine and finished bags are produced by above mentioned equipment.

Q5-How many years of your factory?

A5-our company is established since 1999. till now already around 25 years experience for machinery.

Q6-What certificate of machine do you have?

A6-CE, ISO 9001, more than 50 pieces Patent of machine.

Q7-What about the development of your company?

A7-Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as ”Patent Model Enterprise” as well. Up to now, we have obtained over 100 patents, among which more than 50 are invention patents.

Q8- How many exhibition do you take part in?

A8-Every year, CHOVYTING Machinery actively participates in over 10 international plastic & packaging exhibitions, including the German K Show, Drupa, the American NPE, Mexico's PLAST IMAGEN & EXPO Plastics, Saudi Arabia's Saudi Plastic, Russia's Ruplast & RosUpack, the UAE's ARAplastic, Turkey's EURASIA plastic, as well as China's Chinaplas and Carton.

Q9-How many agent do your company have?

A9-Our customers are spread across 99 countries globally, with the number of customers exceeding 900. In countries like Mexico, Turkey, Chile, Syria, and Lebanon, we have exclusive agents to ensure timely and professional services for local customers. Meanwhile, in countries such as Peru, Iran, Russia, Colombia, and Egypt, we have high-quality distributors, further expanding our market.
