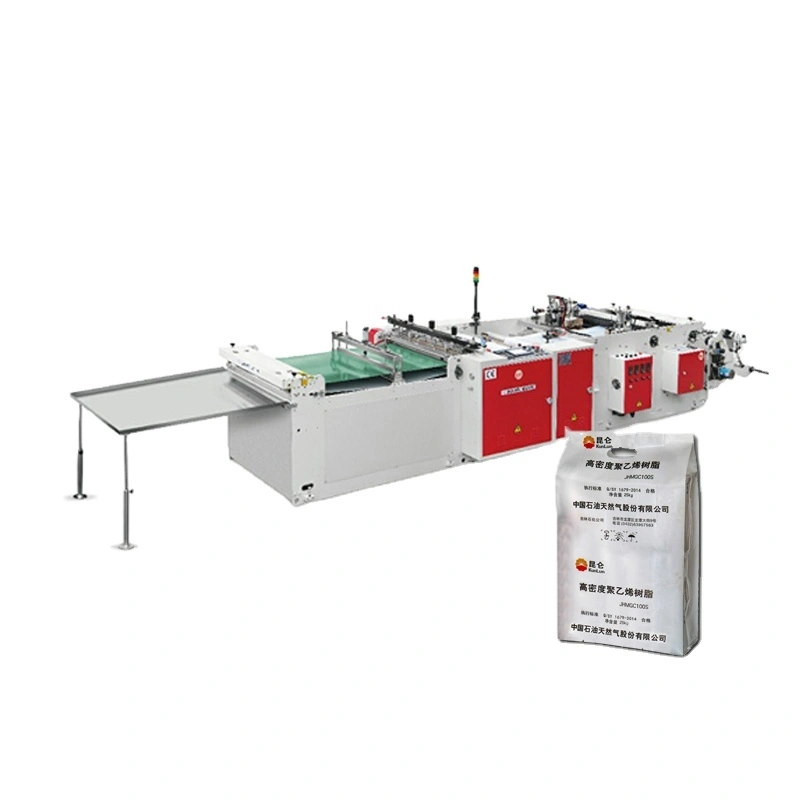

800FBA Plastic Heavy Duty Bottom Sealing Bag Making Machine
The 800FBA Plastic Heavy Duty Bottom Sealing Bag Making Machine is specifically designed for fertilizer packaging with thick bags. Featuring a dual electric heat sealing design, it produces strong and durable seals to meet the high-intensity requirements of fertilizer packaging. It can also produce multiple columns of unprinted bags, greatly improving production efficiency to meet the capacity demands of large-scale fertilizer packaging operations.
Product Description
CW-1400FB Automatic Heavy Duty Fly Knife Plastic Bottom Sealing Cutting Ice Bag Industrial Bag Making Machine for Garbage bags
Machine specifications:
bottom sealed flying knife bag making machine/ plastic bag making machine to make heavy duty bags by fly knife, which is
specializing in producing tension less flat bag
Feature:
1. Newly design flying knife cutting system, easy to exchange the blade
2. Double electric hot heating sealing design, sealing firmly
3. The entire stack, the entire output
4)Can make multi-lane non-print bag.
Optional device:
1.Hanger hole puncher device
2.V type sealing device
3.Surface friction unwinding device
4.Double servo feeding for producing double lane print bag
| Model | CW-1000FB | CW-1200FB | CW-1400FB | CW-1600FB |
| Bag making width | 900mm | 1100mm | 1300mm | 1500mm |
| Bag making length | 200-3000mm | 200-3000mm | 200-3000mm | 200-3000mm |
| Mechanical speed | 80pcs/min | 80pcs/min | 80pcs/min | 80pcs/min |
| Line speed | 60m/min | 60m/min | 60m/min | 60m/min |
| Applied film thickness | (0.04mm-0.15mm)x4 | (0.04mm-0.15mm)x4 | (0.04mm-0.15mm)x4 | (0.04mm-0.15mm)x4 |
| Power | 7.5KW | 8KW | 9KW | 10KW |
| Machine dimension | 6*1.8*1.3mtr | 6*2.2*1.3mtr | 6*2.4*1.3mtr | 6*2.4*1.3mtr |
Bag Samples
Details Images
Automatic Unwinding Part
1.Single unwinding max diameter is 1000mm, unwinding roller is head blocked, load material by auto pneumatic
2.Feeding dragging is AC motor control, automatic adjust speed control
Printing image tracking
Printing image tracking adopts photocell from SICK Germany.(Maximum length of printing bag is 800mm)
Flying Knife
1.Using the design by flying knife cutting off,the knife is easy to be replaced.
2.The sealing design is heated by two-sided(up and down) heating lines, to achieve a strong sealing line.
3.The bag sending design providing the non-overlapping sealing line system.
Automatic Collect Table
1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model).
2.Double servo feeding for producing double lane print bag.
Main Part
Packing
About Us
Exhibition
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
