800SBD Automatic Side Weld/Bottom Weld/Double Side Weld Bag Making Machine
Product Description
Optional devices
1.round bottom chicken bag puncher unit
2.OPP header bag device (with pearl film inserted, butterfly punch, adhesive tape and ultrasonic sealing)
3. air hole puncher with rack
4. conveyor table
Brief introduction
This machine is multi-function bag making machine.Fully automatic production,easily operation. The machine normal to produce PE material side sealing bag, bottom sealing bag, and double sides sealing bag. The speed of bag according the width size of bag. The max speed of bag making is 200pcs/min. This machine is original design of side sealing bag making machine. so with many different OPTIONAL device to add t o the machine, that the machine can produce many others type bags. Such as handle punch bag , chicken bag, bread bag and OPP header bag etc...
Note:
Please be free to send us the required bag samples & bag size to check every details & confirm the bag type in order to work out a proper offer to meet your needs.
| Model | CW-800SBD | CW-1000SBD | ||||
| Bag type | side seal | double seal | bottom seal | side seal | double seal | bottom seal |
| Bag height | 750mm | 750mm | 900mm | 950mm | 950mm | 900mm |
| Bag width | 900mm | 900mm | 750mm | 900mm | 900mm | 950mm |
Speed |
Side seal bag | 150pcs/min | 140pcs/min | |||
| Bottom seal bag | 140pcs/min | 130pcs/min | ||||
| Double seal bag | 120pcs/min | 110pcs/min | ||||
| OPP bag | 150pcs/min | 150pcs/min | ||||
| Total power | 8kw | 8.5kw | ||||
| Machine weight | 1300kg | 1470kg | ||||
| Machine dimension | 5000*1550*1870mm | 5000*1750*1870mm | ||||
| Air compressor (not included) |
5HP | 5HP | ||||
Sample Bag
Details Images
Unwinding Device
1.The max diameter of the unwinder is 600mm,the unwinder axle adopt plug-shaft.
2.Unwinder with EPC device. With photocell, Manual magnetic power tension control 2.5KG.
3.Feeding traction is controlled by AC motor, automatic adjust the speed.

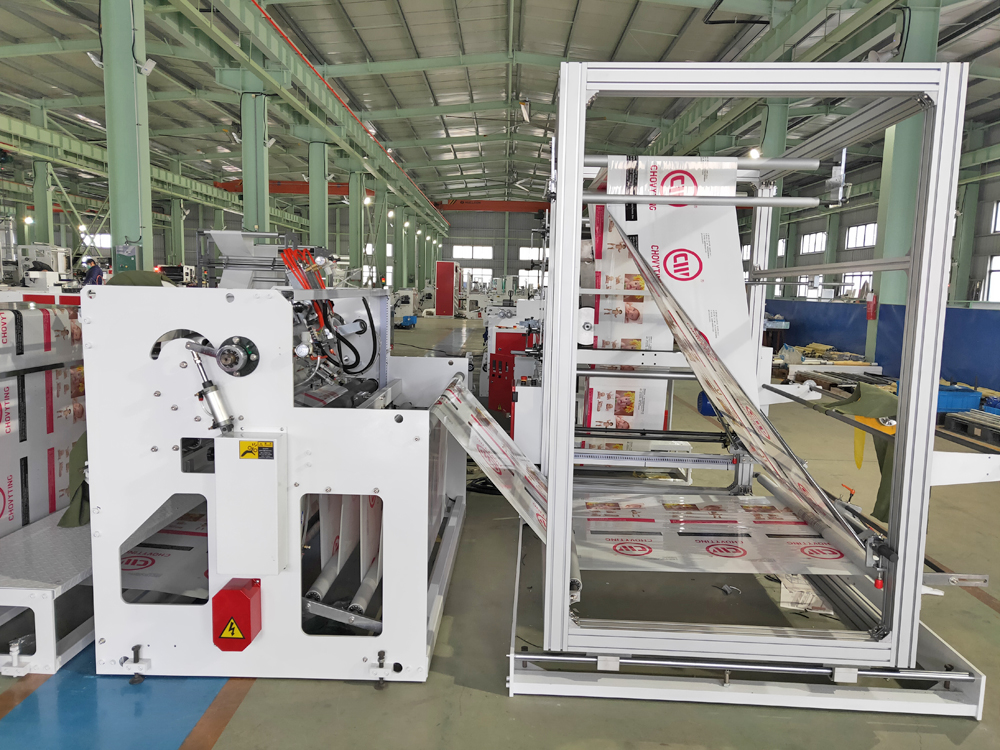

Triangle folding device
Equipped with Triangle folding device 1600mm (edge folding device,which can fold the big single sheet film into 2 layer smaller folded film).
Chicken Bag Device
1.Heat sealing Chicken bag puncher device by air cylinder.
2.2 pcs hole punch from top of bag
Side Sealing knife
1.Side seal knife with water cycle cool system,principal axis transmission belt cylinder lifting and down.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Bottom sealing /side sealing knife, humanism structure design easy to cleaning.
Automatic Collect Table
1.Side seal knife with water cycle cool system,principal axis transmission belt cylinder lifting and down.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Bottom sealing /side sealing knife, humanism structure design easy to cleaning.
Main Part
Product Usage
Packing
