Product details of the plastic zip lock bag making machine
Product Information
The fashionable design of plastic zip lock bag making machine allows customers to enjoy the aesthetics. Adhering to the principle of 'quality first', this product is manufactured according to the industry quality requirements. We greatly value every detail when manufacturing plastic zip lock bag making machine.
Product Description

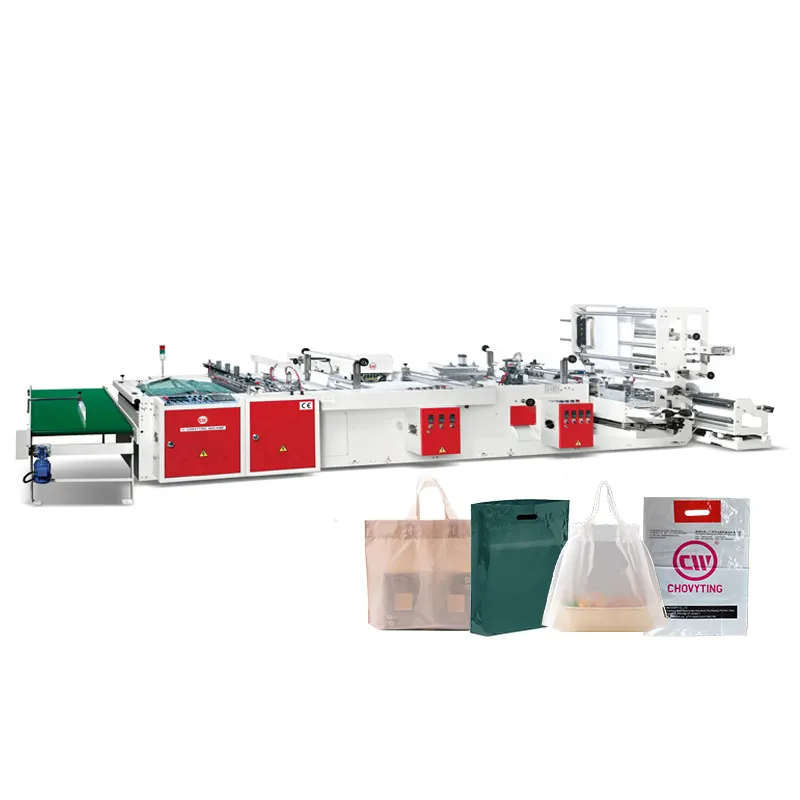

Brief Introduction
This machine has four functions (soft loop handle bag,patch handle bag,poly draw handle bag,die cut handle bag).
It is coupled with machinery,light,electronic and pneumatic.
Main Features
1) Flexible soft loop handle and patch film feeding system,fully automatic
2) Pre-sealing knife heated on double sides and strong for fusing,to make the bags without deformation
3) The best quality side sealing knife of italy,Heated to igh temperatures not deformation
4) Newly design of sealing knife top lift and turn over system
5) It's designed by heating punching and it's easy to cut of,the waster is excluded automatically
Optional
1.Single sheet film unit,hydrulic device(connect or seperate)
2.Bottom seal knife+double seal knife
3.Top folding continuously device
Technical Parameter:
| Model | CW-800ZD | CW-800LP | CW-800SP | CW-800CSD | CW-800SDP |
| Length of bag-making（Height of bag） | 250-750mm | 250-750mm | 250-750mm | 250-700mm | 250-700mm |
| Width of bag-making | 250-600mm | 250-B00mm | 250-BD0mm | 250-B00mm | 250-600mm |
| Top-folding edge | 50-75mm | 50-75mm | 50-75mm | 50-75mm | 50-75mm |
| Bottom gusset | 20-70mm | 20-70mm | 2Q-70mm | 20-60mm | 20-80mm |
| Speed of bag-making | |||||
| Soft loop handle bag | 60pcs/min | 80pcs/min | 120pcs/min | 100pcs/min | |
| Patch handle bag | 60pcs/min | 80pcs/min | 100pcs/min | ||
| Poly draw handle bag | 65pcs/min | ||||
| Die cut handle bag | 80pcs/min | 80pcs/min | 80pcs/min | 140pcs/min | 120pcs/min |
| Total power | 13KW | 10KW | 10KW | 10KW | 18KW |
| Machine weight | 3500kg | 3200kg | 3200kg | 3000kg | 3600kg |
| Machine dimension（LxWxH] | 8.2 x 3.1xl.87m | B.2x 3.1 x 1.87m | B x 3.1 x 1.87m | 7x 2.2 x 1.95m | 10.2 x2.2xl.95m |

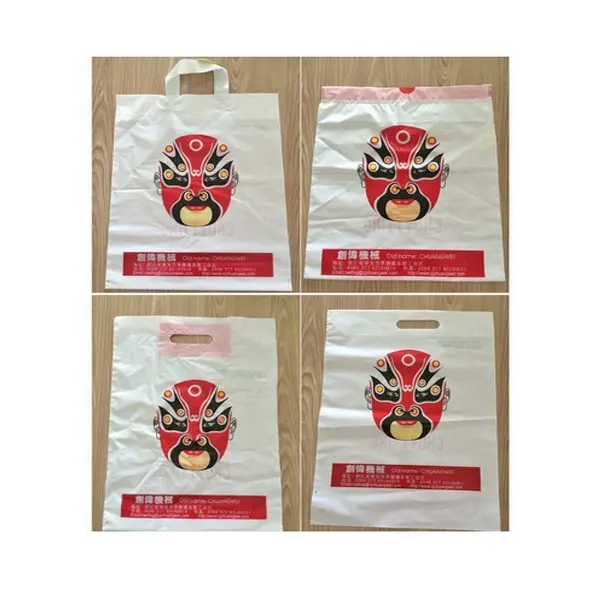

Sample Bag
Details Images

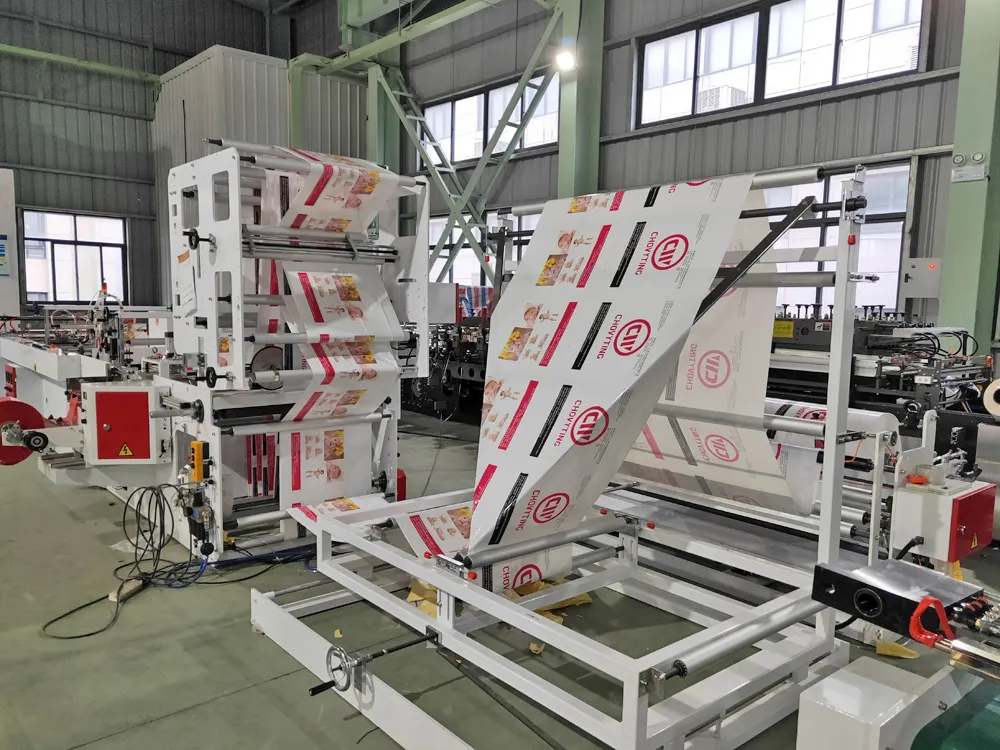

Common unwinding
1.Unwinding adopt common loading , max diameter of raw rolling material is φ600mm
2.Adopt auto tension control.
3.Unwinding with auto EPC
4.1600mm triangle folding device, which can adjustment
Top-folding continuously sealing device
1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing

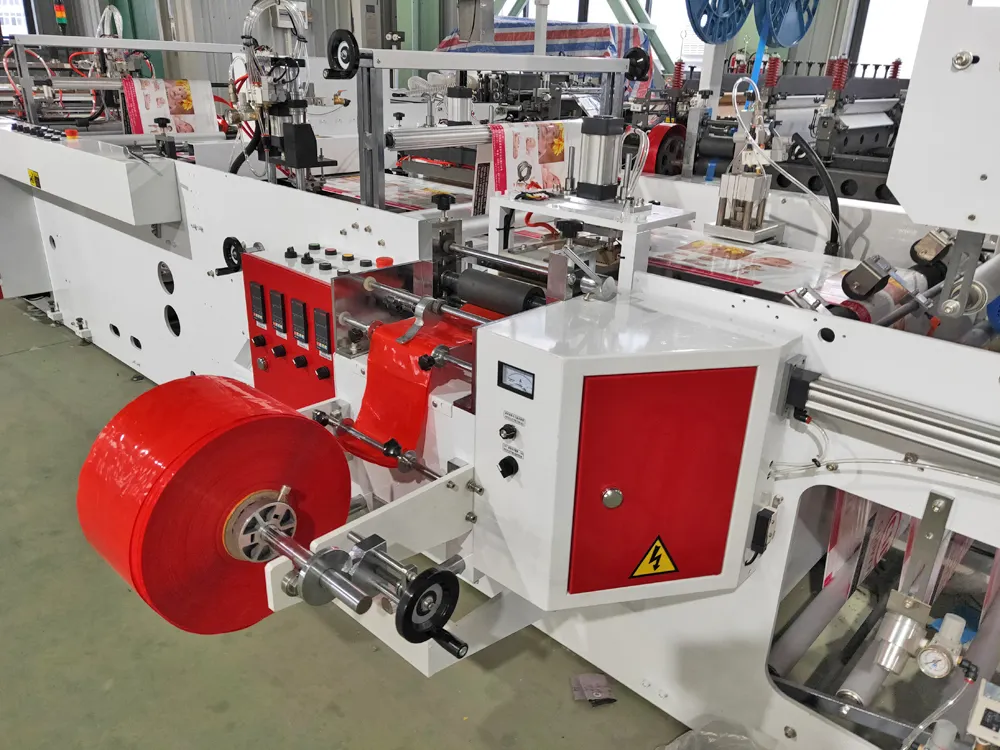

Soft loop handle bag device
1. Hydraulic skew angle feeding soft loop
2. 90 degree turnabout gear rotary soft loop
3. Special oblique drag style rotary soft loop
4. Micro-motor driver soft loop handle go forward and back off
5. Centralize style air control system
Patch handle bag device
1. Turnabout cylinder control patch
2. With flying knife cutting fast
3. Special pattern sealing mould
4. Micro-motor driver patch go forward and back off
5. Base mould of patch device adopt whole steel plate
Poly draw handle bag device
1. Unwinder wiith double disc plate
2. Non-tension unwind
3. With 25mm half hole puncher
4. With poly draw tape unwind
5. With top fold sealing bar

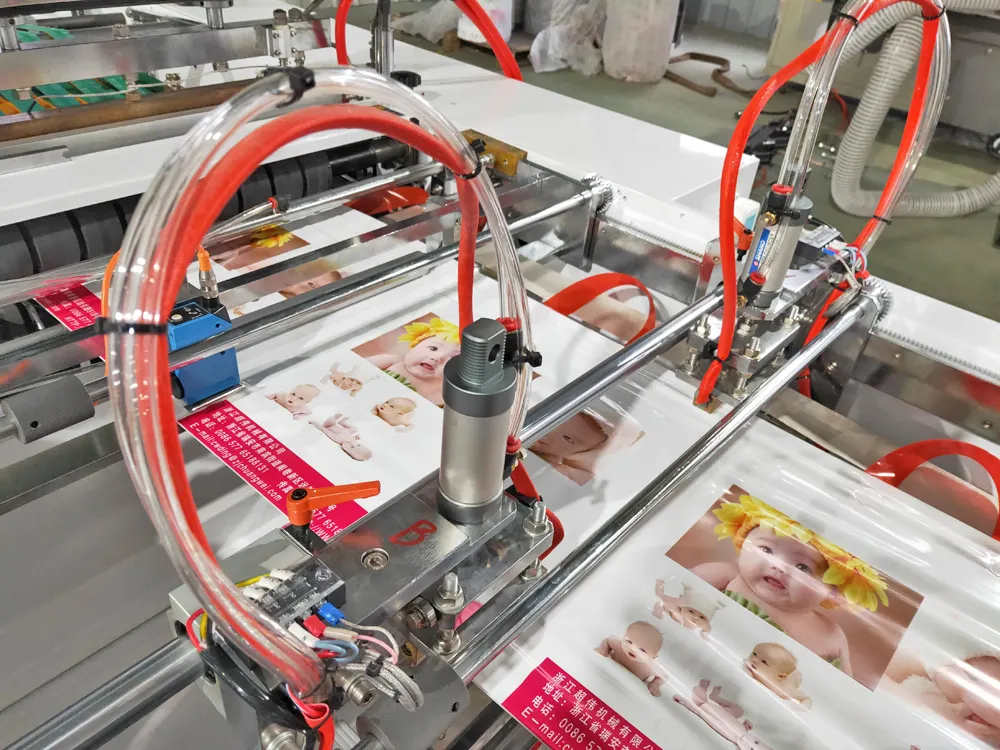

Heat sealing handle punch
1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate

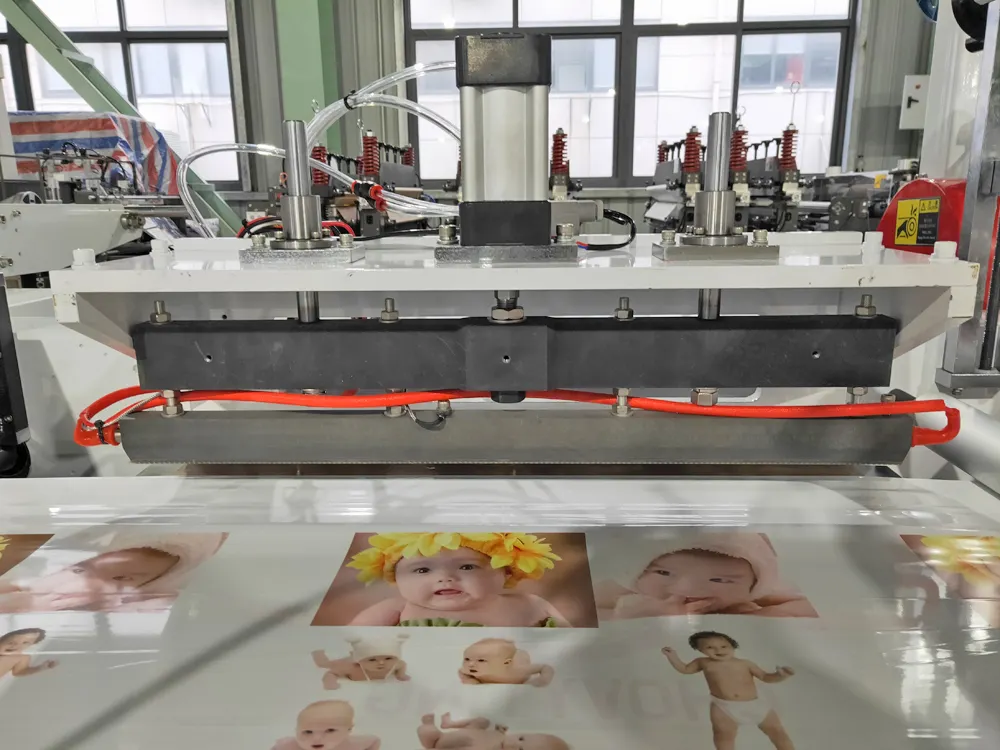

Side sealing parts
1.Side sealing knife principal axis transmission belt cylinder lifting and down.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3.Side sealing knife with concealed style heating tube, temperature steady
Convey collect device
1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2.When the bag reach to a certainty quantity, collect table will move automatically, and continue producing.
Main Part
Product Usage
Packing
About Us
Exhibition
FAQ
1) Is your company a factory or a trading company? We are a factory. 2) Where is your factory? How can i visit your company? Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us. 3) What is the suitable material for your machines? PE, OPP, laminated material ,etc are suitable for our machines 4) What kind of machine do you have ? We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc... 5) How many years of your factory? Our company is established since 1999. 6) What certificate of machine do you have? CE, ISO 2008, more than 50 pieces Patent of machine 7) What about the development of your company? Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well. 8) How many exhibition do you take part in? We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc... 9) How many agent do your company have? We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc... 10) How many workers of your company? More than 150 workers.
