Side Sealing Bag Making Machine Side Weld Bag Machine Supply
Company Advantages
· side weld bag machine is produced with high craftwork.
· The product has been certified to a number of recognized standards, such as ISO quality standards.
· Zhejiang Chovyting Machinery Co., Ltd. can provide the best technological process and high performance side weld bag machine with low cost according to user's demand.
Product Description

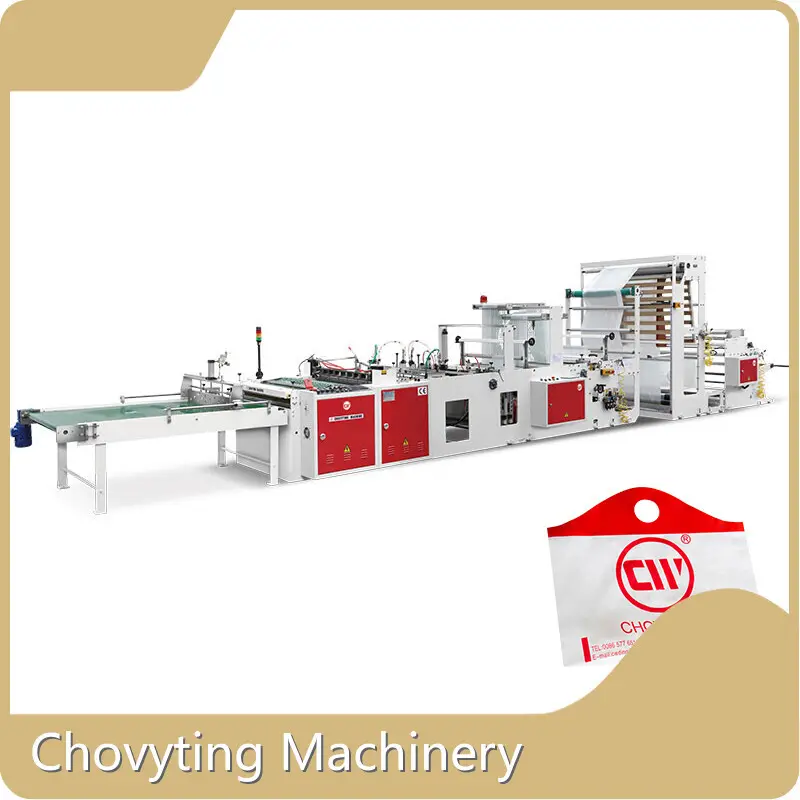

CW-1000SW SIDE SEAL TOP SINE WAVE BOUTIQUE PLASTIC HANDLE CARRIER BAG MAKING MACHINE
this machine equipped with S cutter system, and is fully automatic controlled by PLC and touch screen. totally trouble free operation and easy maintenance.
it is to make plastic sine top wave bags which are used for packing cakes & biscuit or cookies gift box. this machine is very popular in USA, SOUTH AMERICA REGION & MID EAST REGION.
Ideal for the food service industry, Wave Bags feature large bottom gussets and exaggerated sloped handles, which allow take-out and home meal replacement containers to lie flat on the bottom of the bag.
Technical Parameter:
| Model | CW-1000SW |
| Length of bag making | 250-450mm |
| width of bag making | 100-700mm |
| Unwinder width | 1000mm |
| Unwinder max. diameter | 900mm |
| speed of bag making | 30-100 pcs/min(side seal bag)x 2 lanes |
| 30-60 pcs/min(SIN wave bag) X 2 lanes | |
| bottom gusset | 30-150mm |
| total power | 12.2kw |
| weight of machine | 3500kg |
| overall dimension | 7800X2500X2050mm |
Sample Bag
Details Images
Pneumatic unwind device
1)Unwind with pneumatic loading up (max 200kg)
2)Vertical tube film gusseting device for easy operation side gusset
EPC control for two line
1)sin wave cutting driven by 2 servo motor which enable to control sin wave change,operator could set wave via touch screen
S type cutting design
Handle Hole Punch device
Automatic collect table
Product Usage
Main Part
Packing
About Us
Exhibition
FAQ
1) Is your company a factory or a trading company? We are a factory. 2) Where is your factory? How can i visit your company? Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us. 3) What is the suitable material for your machines? PE, OPP, laminated material ,etc are suitable for our machines 4) What kind of machine do you have ? We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc... 5) How many years of your factory? Our company is established since 1999. 6) What certificate of machine do you have? CE, ISO 2008, more than 50 pieces Patent of machine 7) What about the development of your company? Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well. 8) How many exhibition do you take part in? We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc... 9) How many agent do your company have? We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc... 10) How many workers of your company? More than 150 workers.
Company Features
· Zhejiang Chovyting Machinery Co., Ltd., a prestigious side weld bag machine manufacturer in China, has been focusing on the invention and production of innovative side weld bag machine.
· At present, Zhejiang Chovyting Machinery Co., Ltd. has possessed the most advanced technical level.
· We work hard to support environmental progress. We constantly seek new and innovative methods to minimize the ecological impact of our products and processes.
Product Comparison
Our side weld bag machine has the following advantages over peer products.
