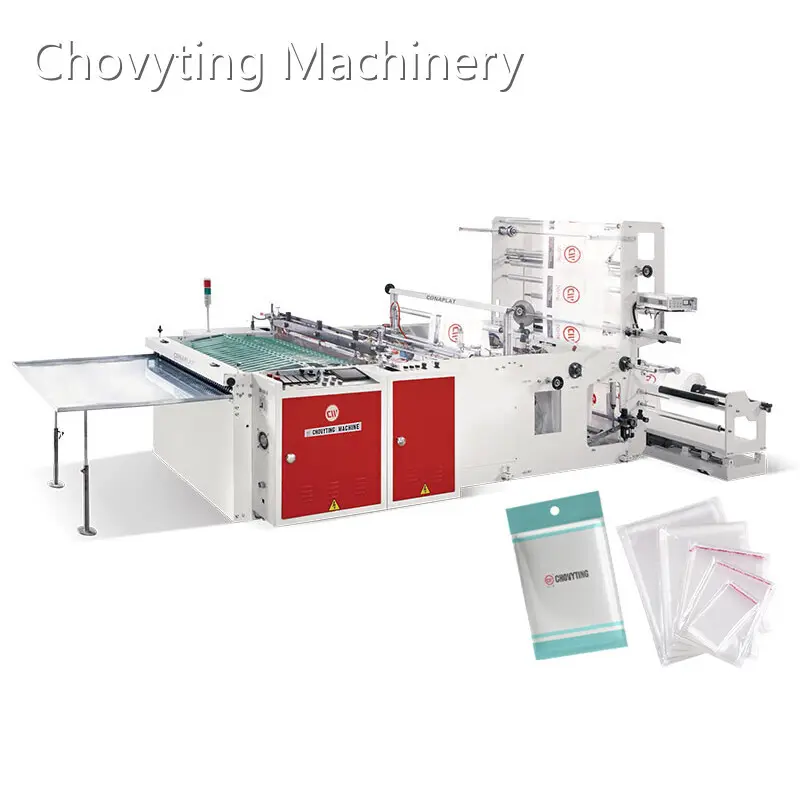

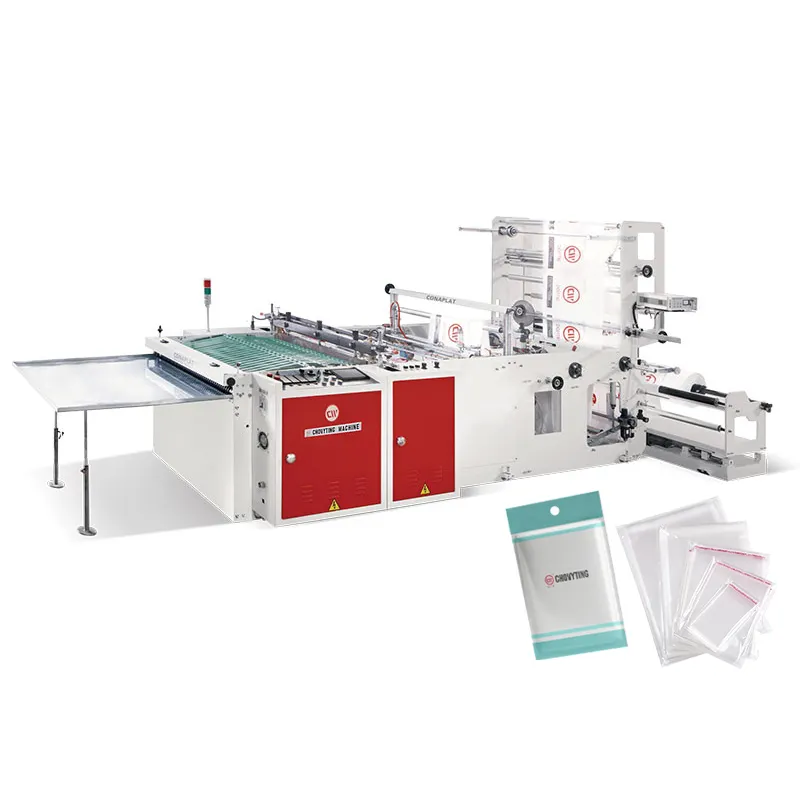

Product details of the wicket bag machine
Product Overview
Chovyting Machinery wicket bag machine is designed & crafted by using premium quality material and cutting-edge technology in compliance with the current market standards. The quality of this product is excellent, exceeding the industry standard. wicket bag machine, one of Chovyting Machinery's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields. This product has been exported to many overseas countries in the world through international marketing channels.
Product Information
Compared with similar products, our wicket bag machine's core competitiveness is mainly reflected in the following aspects.
Product Description
Optional devices
1.round bottom chicken bag puncher unit
2.OPP header bag device (with pearl film inserted, butterfly punch, adhesive tape and ultrasonic sealing)
3. air hole puncher with rack
4. conveyor table
Brief introduction
This machine is multi-function bag making machine.Fully automatic production,easily operation. The machine normal to produce PE material side sealing bag, bottom sealing bag, and double sides sealing bag. The speed of bag according the width size of bag. The max speed of bag making is 200pcs/min. This machine is original design of side sealing bag making machine. so with many different OPTIONAL device to add t o the machine, that the machine can produce many others type bags. Such as handle punch bag , chicken bag, bread bag and OPP header bag etc...
Note:
Please be free to send us the required bag samples & bag size to check every details & confirm the bag type in order to work out a proper offer to meet your needs.
| Model | CW-800SBD | CW-1000SBD | ||||
| Bag type | side seal | double seal | bottom seal | side seal | double seal | bottom seal |
| Bag height | 750mm | 750mm | 900mm | 950mm | 950mm | 900mm |
| Bag width | 900mm | 900mm | 750mm | 900mm | 900mm | 950mm |
| Speed | Side seal bag | 150pcs/min | 140pcs/min | |||
| Bottom seal bag | 140pcs/min | 130pcs/min | ||||
| Double seal bag | 120pcs/min | 110pcs/min | ||||
| OPP bag | 150pcs/min | 150pcs/min | ||||
| Total power | 8kw | 8.5kw | ||||
| Machine weight | 1300kg | 1470kg | ||||
| Machine dimension | 5000*1550*1870mm | 5000*1750*1870mm | ||||
| Air compressor(not included) | 5HP | 5HP | ||||

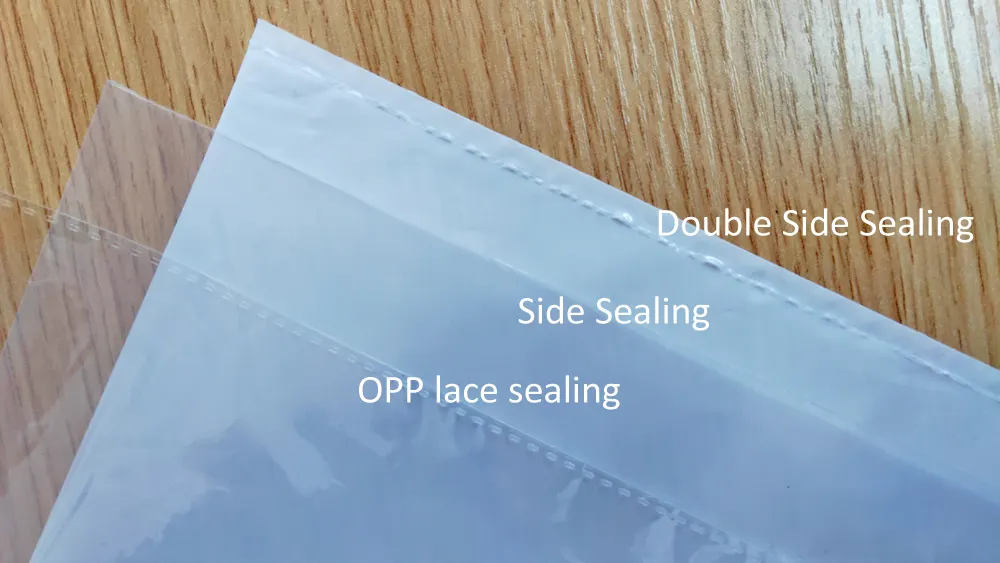

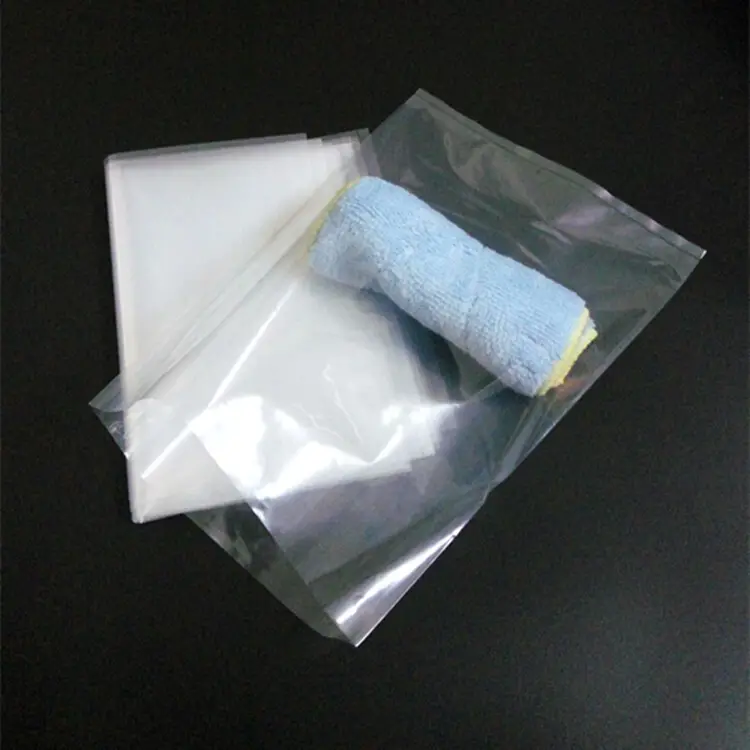

Sample Bag
Details Images

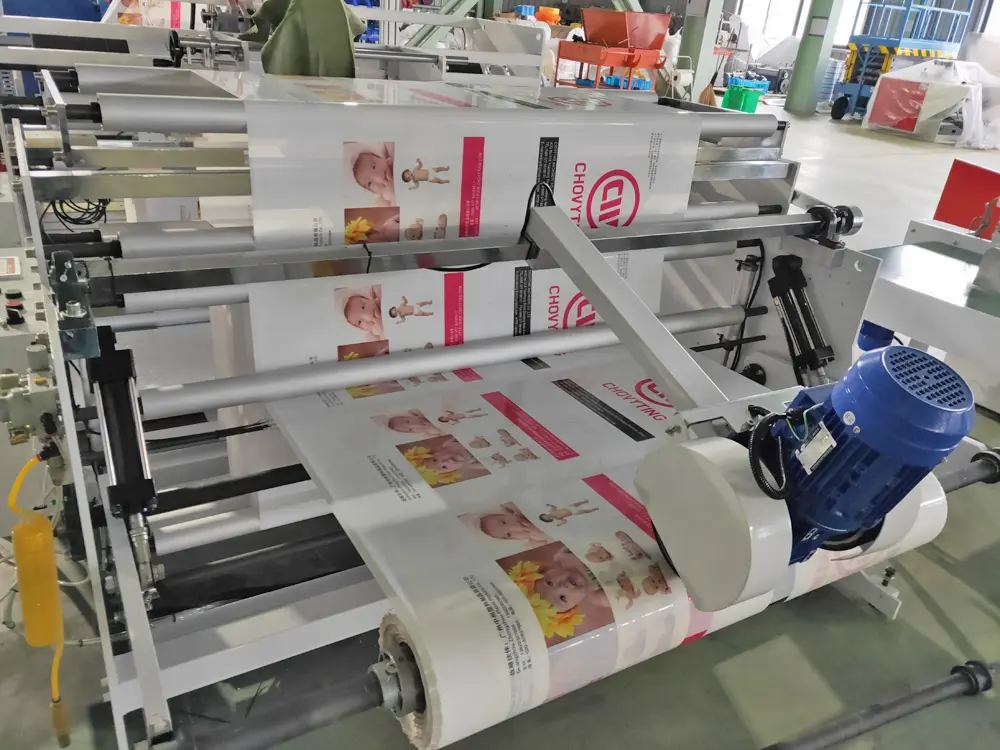

Unwinding Device
1.The max diameter of the unwinder is 600mm,the unwinder axle adopt plug-shaft.
2.Unwinder with EPC device. With photocell, Manual magnetic power tension control 2.5KG.
3.Feeding traction is controlled by AC motor, automatic adjust the speed.
Triangle folding device
Equipped with Triangle folding device 1600mm (edge folding device,which can fold the big single sheet film into 2 layer smaller folded film).

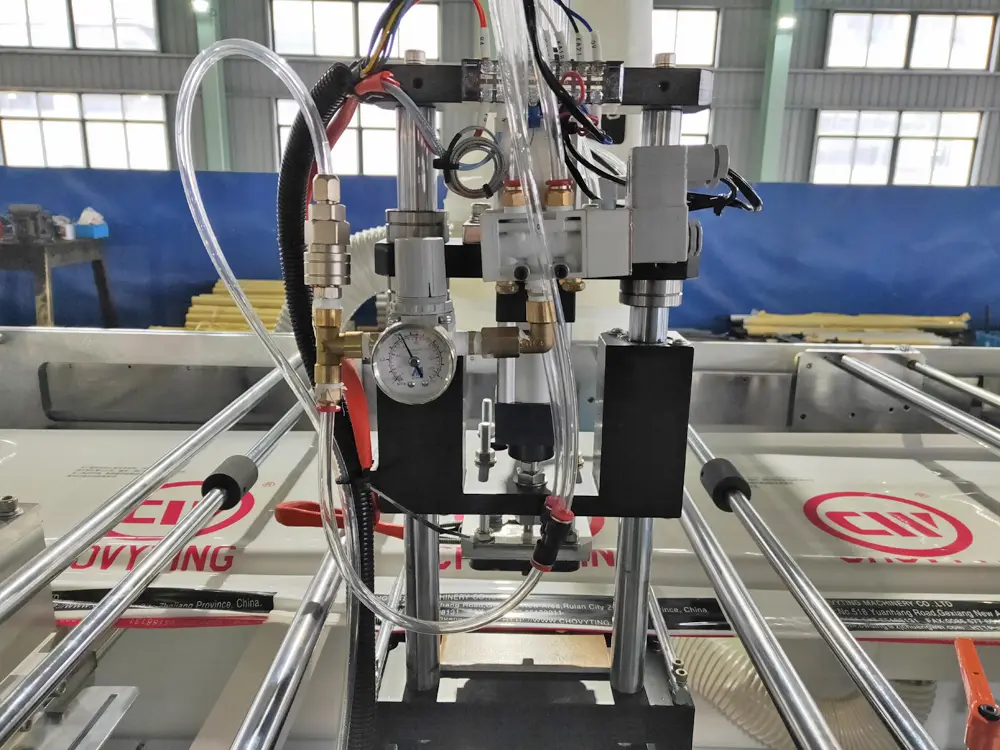

Chicken Bag Device
1.Heat sealing Chicken bag puncher device by air cylinder.
2.2 pcs hole punch from top of bag
Side Sealing knife
1.Side seal knife with water cycle cool system,principal axis transmission belt cylinder lifting and down.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Bottom sealing /side sealing knife, humanism structure design easy to cleaning.
Automatic Collect Table
1.Side seal knife with water cycle cool system,principal axis transmission belt cylinder lifting and down.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Bottom sealing /side sealing knife, humanism structure design easy to cleaning.
Main Part
Product Usage
Packing
About Us
Exhibition
FAQ
1) Is your company a factory or a trading company? We are a factory. 2) Where is your factory? How can i visit your company? Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us. 3) What is the suitable material for your machines? PE, OPP, laminated material ,etc are suitable for our machines 4) What kind of machine do you have ? We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc... 5) How many years of your factory? Our company is established since 1999. 6) What certificate of machine do you have? CE, ISO 2008, more than 50 pieces Patent of machine 7) What about the development of your company? Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well. 8) How many exhibition do you take part in? We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT, UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...9) How many agent do your company have? We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc... 10) How many workers of your company? More than 150 workers.
Company Information
Zhejiang Chovyting Machinery Co., Ltd. owns an independent factory to produce wicket bag machine. In view of the interests of customers, Chovyting Machinery is able to ensure the durability of wicket bag machine. Chovyting Machinery is confident to provide you the most comprehensive services and products of high quality. Call!
